Description

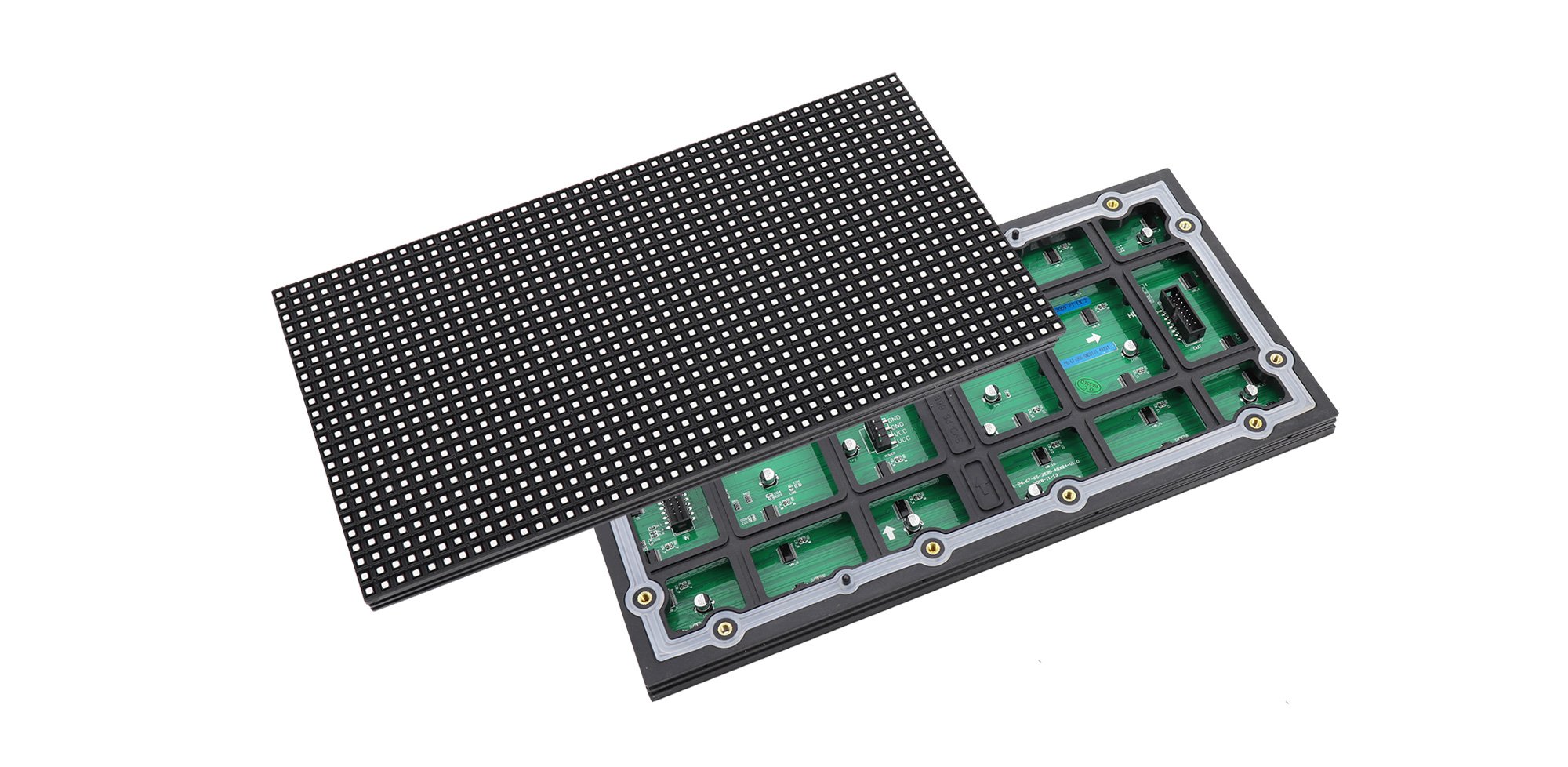

Outdoor LED Display Module
| Model | Module Size（mm） | Pixel Pitch（mm） | Module Resolution | Refresh Rate(Hz) | Brightness(cd/㎡) | Port type | Best viewing distance(m) |
|---|---|---|---|---|---|---|---|
| P2 | 320*160 | 2 | 160*80 | 3840/4k | ≥5000 | HUB75E | 2-200 |
| P2.5 | 320*160 | 2.5 | 128*64 | 3840/4k | ≥5500 | HUB75E | 2-200 |
| P3.076 | 320*160 | 3.076 | 104*52 | 3840/4k | ≥5500 | HUB75E | 3-200 |
| P4 | 320*160 | 4 | 80*40 | 3840/4k | ≥5000 | HUB75E | 4-200 |
| P5 | 320*160 | 5 | 64*32 | 3840/4k | ≥5000 | HUB75E | 5-200 |
| P6 | 192*192 | 6 | 32*32 | 3840/4k | ≥5500 | HUB75E | 6-200 |
| P8 | 320*160 | 8 | 40*20 | 3840/4k | ≥4500 | HUB75E | 10-200 |
| P10 | 320*160 | 10 | 32*16 | 3840/4k | ≥4500 | HUB75E | 10-200 |
Features
High Quality LED
Utilizing top-tier Nationstar, Kinglight, and Topstar LEDs, the Outdoor module delivers a high-quality display experience marked by durability and superior luminance for outdoor environments.
High Refresh Rate
The module delivers a refresh rate of 3840Hz, providing flicker-free and fluid visuals that enhance viewer engagement in vibrant outdoor environments.
High Brightness
With a luminosity often exceeding 5000cd/sqm, the P6.67 module is designed to provide perfectly legible displays even in prominent sunlight
SMD 3 In 1
Utilizes Surface-Mount Device (SMD) technology, which allows for more precise and better color performance compared to traditional DIP LED.
High Stable Driver IC
The Outdoor LED display panel is powered by industry-leading driver ICs such as the MBI5124, ICN2053, ICN2038S, ICN2037, or FM6153, ensuring unparalleled image stability and smooth color transitions.
Wide Viewing Angle
Embrace a vast audience reach with a wide viewing angle of 160° both horizontally and vertically for consistently brilliant and inclusive visibility.
High Waterproof Level
This outdoor LED screen panel boasts IP65 waterproofing, offering resilience and clarity in the face of whatever nature throws its way.
