Description
Indoor LED Display Module
| Model | Module Size（mm） | Pixel Pitch（mm） | LED Type | Module Resolution | Refresh Rate(Hz) | Brightness(cd/㎡) | Port type | Best viewing distance(m) |
|---|---|---|---|---|---|---|---|---|
| P1.25 | 320*160 | 1.25 | SMD1010 | 256*128 | 3840/4k | ≥500 | HUBE320 | 1-50 |
| P1.53 | 320*160 | 1.53 | SMD1010 | 208*104 | 3840/4k | ≥500 | HUB75E | 1.5-50 |
| P1.86 | 320*160 | 1.86 | SMD1515 | 172*86 | 3840/4k | ≥600 | HUB75E | 2-50 |
| P2 | 320*160 | 2 | SMD1515 | 160*80 | 3840/4k | ≥600 | HUB75E | 2-50 |
| P2.5 | 320*160 | 2.5 | SMD2121 | 128*64 | 3840/4k | ≥600 | HUB75E | 3-50 |
| P3.076 | 320*160 | 3.076 | SMD2121 | 104*52 | 3840/4k | ≥600 | HUB75E | 3-50 |
| P4 | 320*160 | 4 | SMD2121 | 80*40 | 1920/2k | ≥600 | HUB75E | 4-100 |
| P4(Large) | 768*768 | 4 | SMD2121 | 64*64 | 1920/2k | ≥500 | HUB75E | 4-100 |
| P5 | 320*160 | 5 | SMD2121 | 64*32 | 1920/2k | ≥800 | HUB75E | 5-100 |
| P10 | 320*160 | 10 | SMD3528 | 32*16 | 1920/2k | ≥800 | HUB75E | 10-100 |

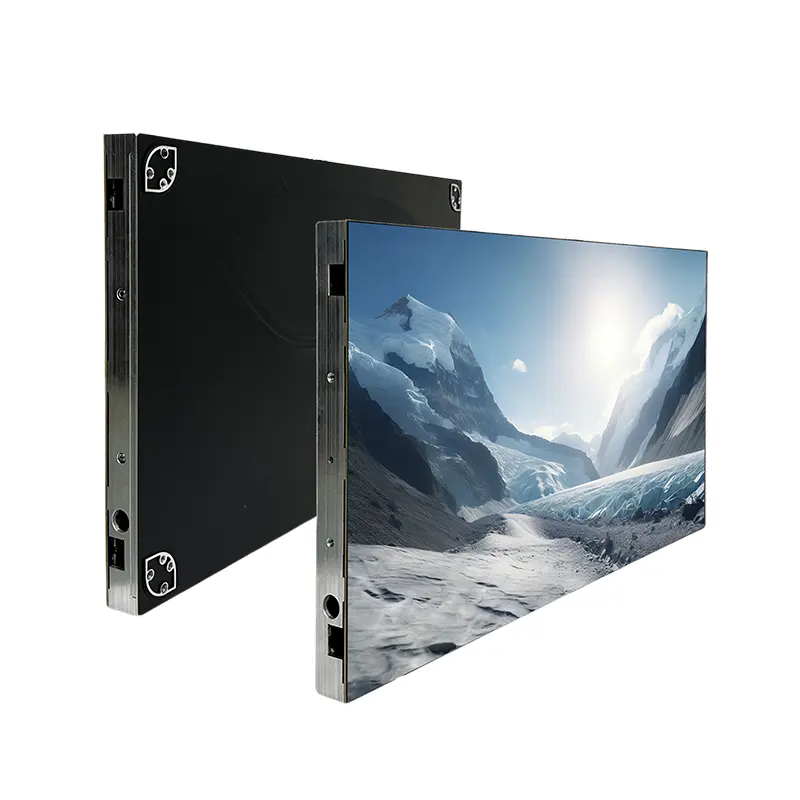

Indoor LED Display Set
| Model | Cabinet Size(mm) | Cabinet Weight(kg) | Cabinet Resolution | Working Temperature | Working Voltage | Average Power Consumption(≈W/m² ) | Max.Power Consumption(≈W/m² ) | Control Method |
|---|---|---|---|---|---|---|---|---|
| P1.25 | 640*480 | 5.8 | 512*384 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P1.53 | 640*480 | 5.8 | 416*312 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P1.86 | 640*480 | 5.8 | 344*258 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P2 | 640*480 | 5.8 | 320*240 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P2.5 | 640*480 | 5.8 | 256*192 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P3.076 | 640*480 | 5.8 | 208*156 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P4 | 960*960/640*480 | 17/5.8 | 240*240/160*120 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P4(Large) | 768*768 | 11 | 192*192 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 240 | 800 | Windows/App |
| P5 | 960*960 | 17 | 192*192 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 200 | 600 | Windows/App |
| P10 | 960*960 | 17 | 96*96 | Storage:-35℃～+85℃ Working:-20℃～+50℃ | 110V/220V±10% | 200 | 600 | Windows/App |
LED Screens are designed for use in areas where alternative display technologies just don’t pack enough punch. Whether it be external factors requiring a high level of screen brightness, or the need to broadcast your message across a larger distance. Indoor LED Screens are guaranteed to leave a lasting impression.

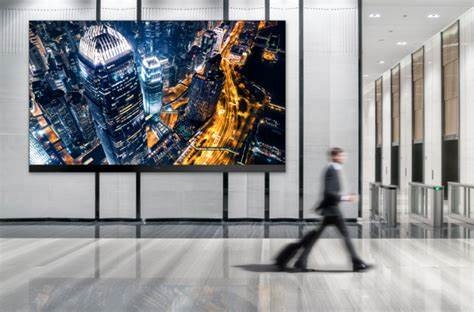

Our range of Indoor led screens are a popular choice for fashion stores, shopping centres, bars & clubs, stadiums & arenas, exhibitions and more.
Haocai offer a range of options based on the viewing distance necessary with modified solutions for up close displays and applications requiring long distance viewing. The smaller the pixel pitch (distance between each pixel), the higher the resolution and closer the viewer can view the screen. Available in 1.25mm, 1.53mm, 1.86mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm pixel pitches and so on.
